NCV20162, NCV20161 CMOS Operational Amplifier

ON Semiconductor

Description

8 MHz, Rail-To-Rail, CMOS Operational Amplifier NCS20161, NCS20162, NCS20164, NCV20161, NCV20162, NCV20164 The NCS20161, NCS20162, and NCS20164 are a .

📥 Download Datasheet

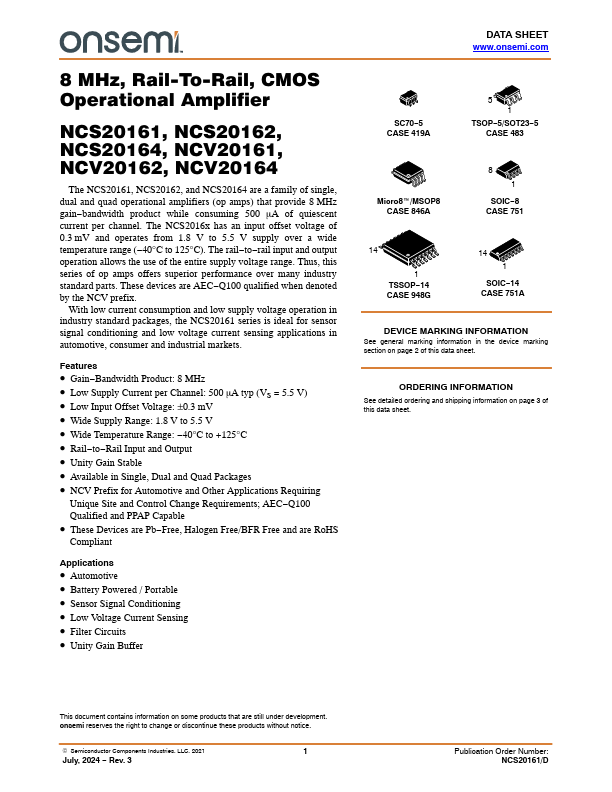

NCV20162 Datasheet Preview — This datasheet PDF includes multiple part numbers: NCV20162, NCV20161. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: NCV20162, NCV20161
Manufacturer: ON Semiconductor ↗
File Size: 344.05 KB
Datasheet: NCV20161-ONSemiconductor.pdf
Description: CMOS Operational Amplifier
Note: This datasheet PDF includes multiple part numbers: NCV20162, NCV20161.
Please refer to the document for exact specifications by model.

Features

* Gain
* Bandwidth Product: 8 MHz
* Low Supply Current per Channel: 500 mA typ (VS = 5.5 V)
* Low Input Offset Voltage: ±0.3 mV
* Wide Supply Range: 1.8 V to 5.5 V
* Wide Temperature Range:
* 40°C to +125°C
* Rail
* to
* Rail I
