NCV20164, NCV20161 - CMOS Operational Amplifier

ON Semiconductor

📥 Download Datasheet

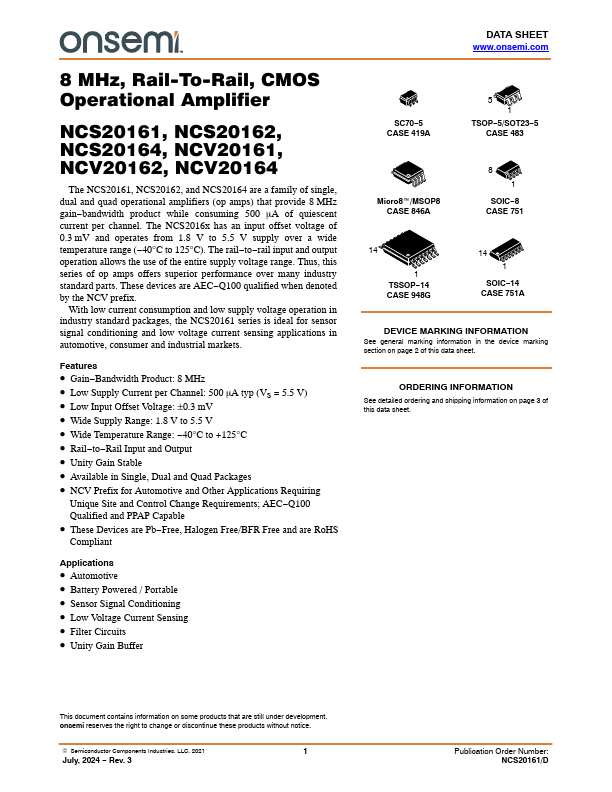

NCV20164 Datasheet Preview — This datasheet PDF includes multiple part numbers: NCV20164, NCV20161. Please refer to the document for exact specifications by model.

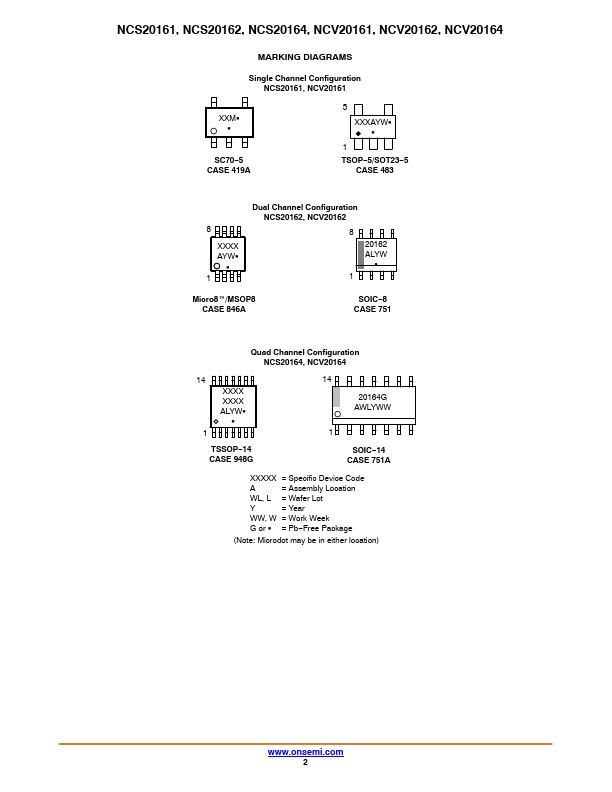

datasheet Preview Page 2

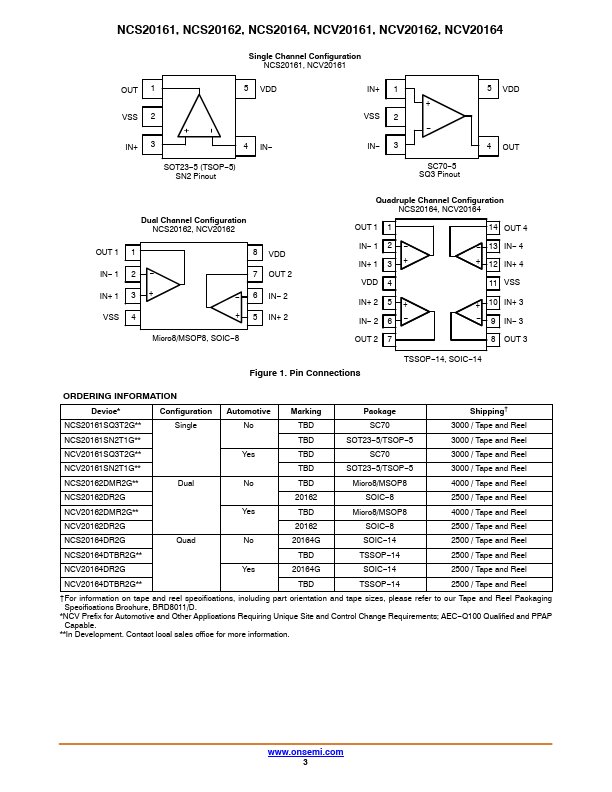

datasheet Preview Page 3

Datasheet Details

Part number	NCV20164, NCV20161
Manufacturer	ON Semiconductor ↗
File Size	344.05 KB
Description	CMOS Operational Amplifier
Datasheet	NCV20161-ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: NCV20164, NCV20161. Please refer to the document for exact specifications by model.

NCV20164 Product details

Features

Gain.
Bandwidth Product: 8 MHz.
Low Supply Current per Channel: 500 mA typ (VS = 5.5 V).
Low Input Offset Voltage: ±0.3 mV.
Wide Supply Range: 1.8 V to 5.5 V.
Wide Temperature Range:.
40°C to +125°C.
Rail.
to.
Rail Input and Output.
Unity Gain Stable.
Available in Single, Dual and Quad Packages.
NCV Prefix for Automotive and Other.
