NCV7680 Datasheet, Regulator/controller, ON Semiconductor

NCV7680 Features

  • Regulator/controller
  • Constant Current Outputs for LED String Drive
  • LED Drive Current up to 75 mA per Channel
  • Open LED String Diagnostic with Open
  • Drain Output

PDF File Details

Part number:

NCV7680

Manufacturer:

ON Semiconductor ↗

File Size:

200.66kb

Download:

📄 Datasheet

Description:

Linear current regulator/controller. (16 Pin SO Wide Exposed Pad Package) Pin # Label Description 1 OUT1 Channel 1 constant current output to LED. Unused pin shoul

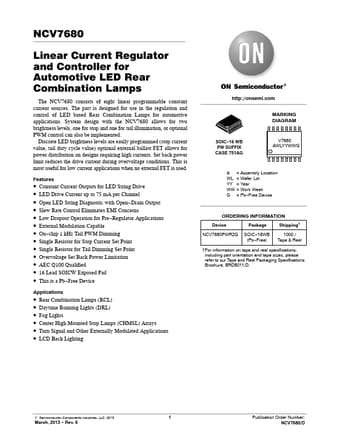

Datasheet Preview: NCV7680 📥 Download PDF (200.66kb)
Page 2 of NCV7680 Page 3 of NCV7680

NCV7680 Application

  • Applications System design with the NCV7680 allows for two brightness levels, one for stop and one for tail illumination, or optional PWM control c
