NCV7708 Datasheet - ON Semiconductor

Double Hex Driver

NCV7708 Features

* http://onsemi.com

* Ultra Low Quiescent Current Sleep Mode Six Independent High

* Side and Six independent Low

* Side Drivers Integrated Freewheeli

NCV7708 General Description

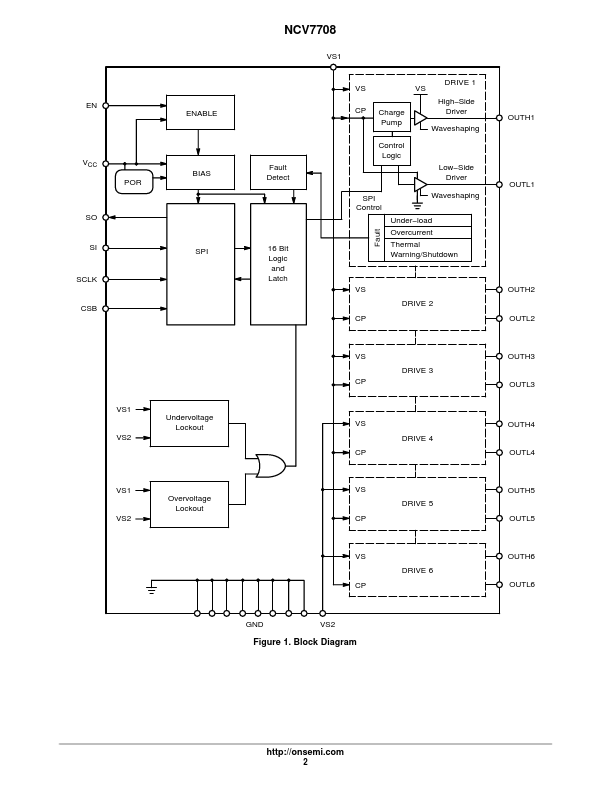

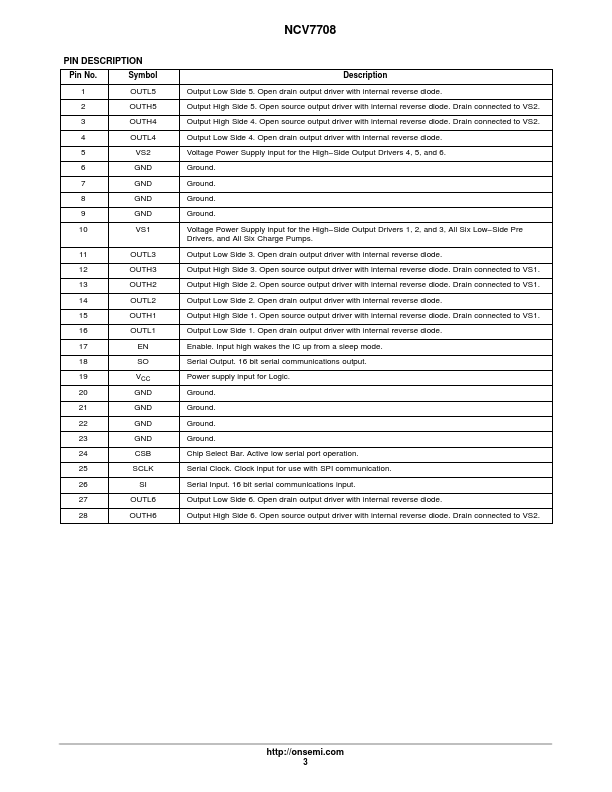

Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 Symbol OUTL5 OUTH5 OUTH4 OUTL4 VS2 GND GND GND GND VS1 OUTL3 OUTH3 OUTH2 OUTL2 OUTH1 OUTL1 EN SO VCC GND GND GND GND CSB SCLK SI OUTL6 OUTH6 Description Output Low Side 5. Open drain output driver with internal revers.

NCV7708 Datasheet (162.83 KB)

NCV7708 Datasheet Preview — Preview of NCV7708 PDF

Datasheet Details

Part number:

NCV7708

Manufacturer:

ON Semiconductor ↗

File Size:

162.83 KB

Description:

Double hex driver.
www.DataSheet4U.com NCV7708 Double Hex Driver The NCV7708 is a fully protected Hex Half Bridge Driver designed specifically for autom.
