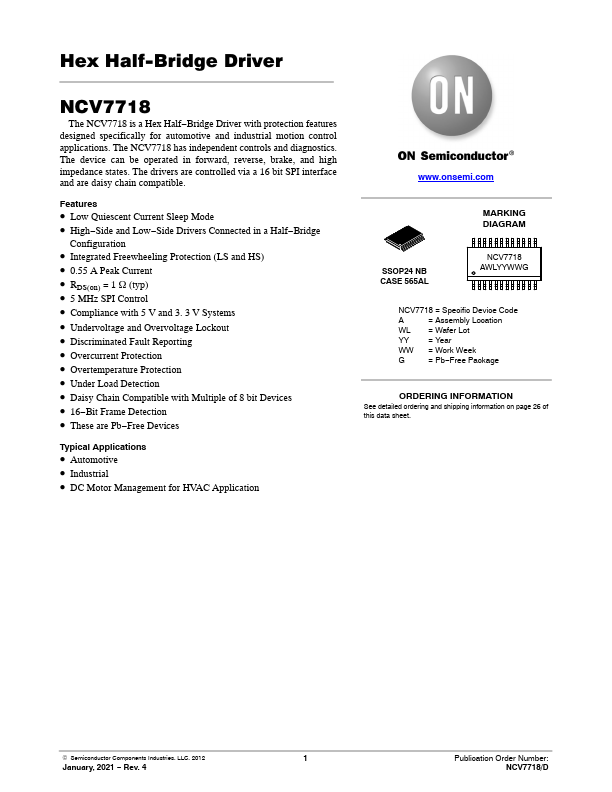

Preview of NCV7718 PDF

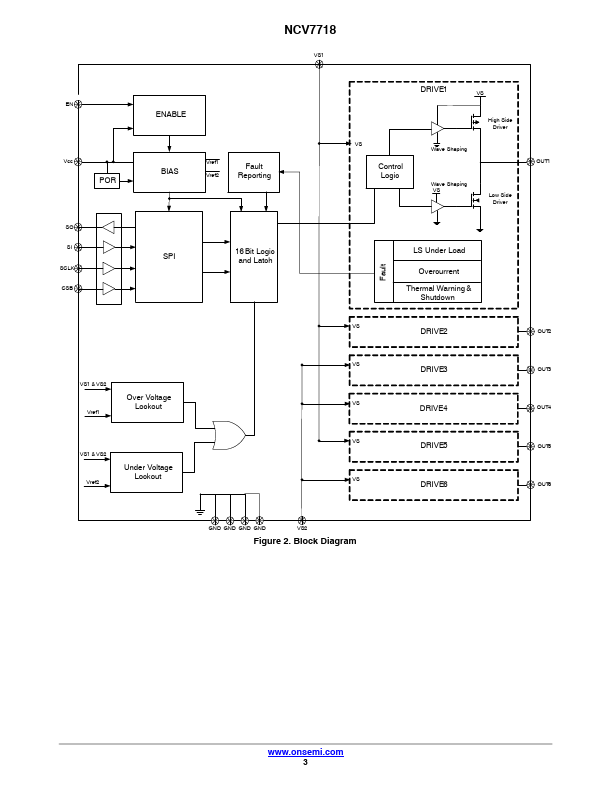

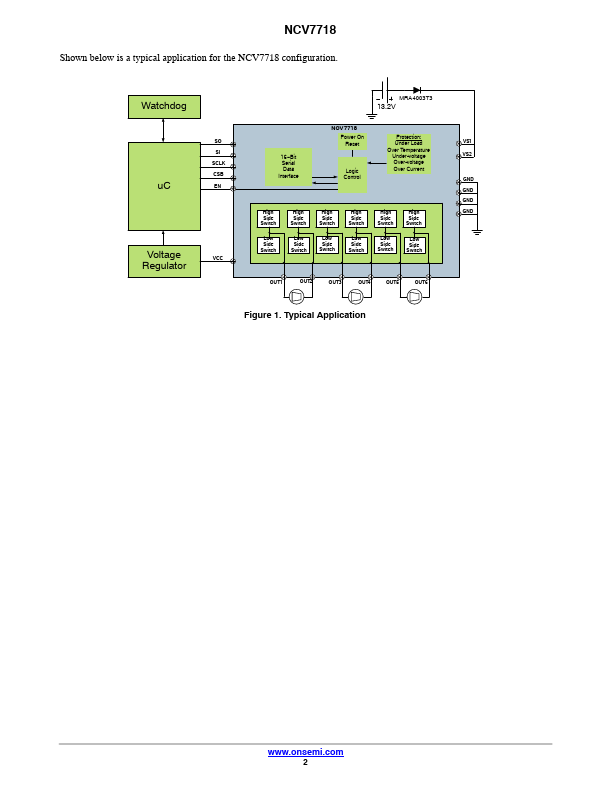

NCV7718 Datasheet Preview Page 2 NCV7718 Datasheet Preview Page 3

Datasheet Details

Part number:

NCV7718

Manufacturer:

ON Semiconductor ↗

File Size:

368.03 KB

Description:

Hex half-bridge driver.

NCV7718, Hex Half-Bridge Driver

The pin *out for the Hex Half *Bridge in SSOP24 package is shown in the table below.

Pin # SSOP24 Symbol Description 1 GND Ground.

Shorted to pin 24 internally.

2 OUT1 Half Bridge Output 1 3 OUT5 Half Bridge Output 5 4 NC No Connection.

This pin should be isolated from a

NCV7718 Features

* designed specifically for automotive and industrial motion control applications. The NCV7718 has independent controls and diagnostics. The device can be operated in forward, reverse, brake, and high impedance states. The drivers are controlled via a 16 bit SPI interface and are daisy chain compatibl
