NL17SHT08 Datasheet, Shifter, ON Semiconductor

NL17SHT08 Features

• Shifter
• High Speed: tPD = 3.5 ns (Typ) at VCC = 5 V
• Low Power Dissipation: ICC = 1 mA (Max) at TA = 25°C
• TTL
• Compatible Inputs: VIL = 0.8 V; VIH = 2 V

PDF File Details

Part number:

NL17SHT08

Manufacturer:

ON Semiconductor ↗

File Size:

164.88kb

Download:

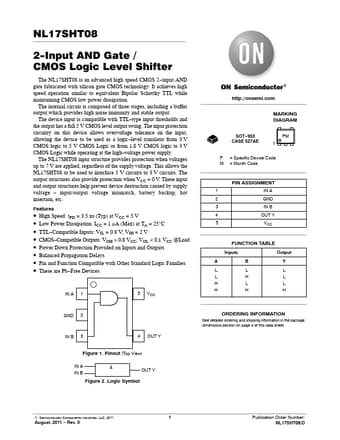

📄 Datasheet

Description:

2-input and gate / cmos logic level shifter.
