NL17SHT32 Datasheet - ON Semiconductor

NL17SHT32 2-Input OR Gate / CMOS Logic Level Shifter

NL17SHT32 2-Input OR Gate / CMOS Logic Level Shifter The NL17SHT32 is an advanced high speed CMOS 2 input OR gate fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation. The internal circuit is composed of three stages, including a buffer output which provides high noise immunity and stable output. The device input is compatible with TTL type input thresholds and the o.

NL17SHT32 Features

* High Speed: tPD = 3.5 ns (Typ) at VCC = 5 V

* Low Power Dissipation: ICC = 2 mA (Max) at TA = 25°C

* TTL

* Compatible Inputs: VIL = 0.8 V; VIH = 2 V

* CMOS

* Compatible Outputs: VOH > 0.8 VCC; VOL < 0.1 VCC @Load

* Power Down Protection Provided

NL17SHT32-ONSemiconductor.pdf

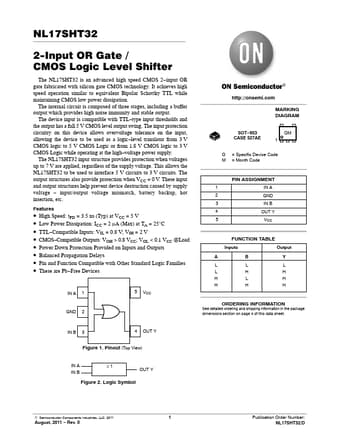

Preview of NL17SHT32 PDF
