NL17SHT126 Datasheet - ON Semiconductor

NL17SHT126 Noninverting Buffer / CMOS Logic Level Shifter

NL17SHT126 Noninverting Buffer / CMOS Logic Level Shifter with LSTTL Compatible Inputs The NL17SHT126 is a single gate noninverting 3 state buffer fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation. The NL17SHT126 requires the 3 state control input (OE) to be set Low to place the output into the high impedance state. The device input is compatible with TTL<.

NL17SHT126 Features

* High Speed: tPD = 3.5 ns (Typ) at VCC = 5 V

* Low Power Dissipation: ICC = 1 mA (Max) at TA = 25°C

* TTL

* Compatible Inputs: VIL = 0.8 V; VIH = 2 V

* CMOS

* Compatible Outputs: VOH > 0.8 VCC; VOL < 0.1 VCC @Load

* Power Down Protection Provided

NL17SHT126-ONSemiconductor.pdf

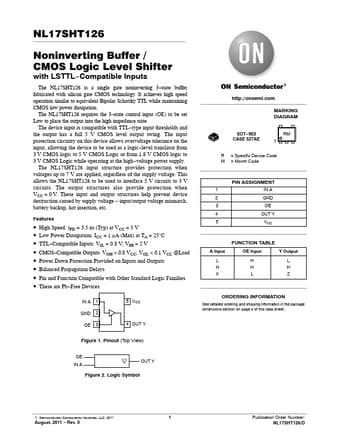

Preview of NL17SHT126 PDF
NL17SHT126 Datasheet Preview Page 2 NL17SHT126 Datasheet Preview Page 3

Datasheet Details

Part number:

NL17SHT126

Manufacturer:

ON Semiconductor ↗

File Size:

128.11 KB

Description:

Noninverting buffer / cmos logic level shifter.
