NSBC143EDP6, NSBC143EDXV6 Dual NPN Bias Resistor Transistors

NSBC143EDP6 Description

Dual NPN Bias Resistor Transistors R1 = 4.7 kW, R2 = 4.7 kW NPN Transistors with Monolithic Bias Resistor Network MUN5232DW1, NSBC143EDXV6, NSBC143ED.

NSBC143EDP6 Features

* Simplifies Circuit Design
* Reduces Board Space
* Reduces Component Count

NSBC143EDP6 Applications

* Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
* These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (TA = 25C, common for Q1 and Q2, unless otherwise noted) Rating Symbol Max Unit Collector-Base Voltage VCBO

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NSBC143EDP6, NSBC143EDXV6. Please refer to the document for exact specifications by model.

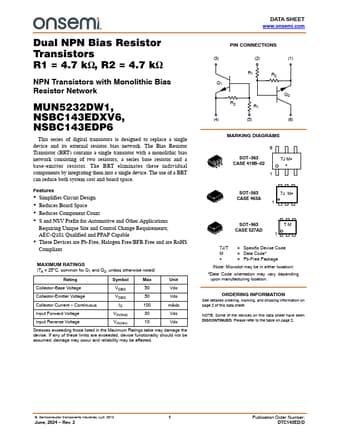

datasheet Preview Page 2 datasheet Preview Page 3
