NSBC143EPDP6, NSBC143EPDXV6 Complementary Bias Resistor Transistors

NSBC143EPDP6 Description

Complementary Bias Resistor Transistors R1 = 4.7 kW, R2 = 4.7 kW NPN and PNP Transistors with Monolithic Bias Resistor Network MUN5332DW1, NSBC143EPD.

NSBC143EPDP6 Features

* Simplifies Circuit Design
* Reduces Board Space
* Reduces Component Count

NSBC143EPDP6 Applications

* Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
* These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (TA = 25C both polarities Q1 (PNP) & Q2 (NPN), unless otherwise noted) Rating Symbol Max Unit Collector

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NSBC143EPDP6, NSBC143EPDXV6. Please refer to the document for exact specifications by model.

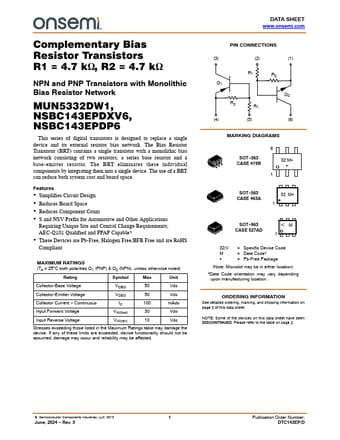

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NSBC143EPDP6, NSBC143EPDXV6
Manufacturer
ON Semiconductor ↗
File Size
394.61 KB
Datasheet
NSBC143EPDXV6-ONSemiconductor.pdf
Description
Complementary Bias Resistor Transistors
Note
This datasheet PDF includes multiple part numbers: NSBC143EPDP6, NSBC143EPDXV6.
Please refer to the document for exact specifications by model.
