NSBC143EPDXV6 Complementary Bias Resistor Transistors

NSBC143EPDXV6 Description

Complementary Bias Resistor Transistors R1 = 4.7 kW, R2 = 4.7 kW NPN and PNP Transistors with Monolithic Bias Resistor Network MUN5332DW1, NSBC143EPD.

NSBC143EPDXV6 Features

* Simplifies Circuit Design
* Reduces Board Space
* Reduces Component Count

NSBC143EPDXV6 Applications

* Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
* These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (TA = 25C both polarities Q1 (PNP) & Q2 (NPN), unless otherwise noted) Rating Symbol Max Unit Collector

📥 Download Datasheet

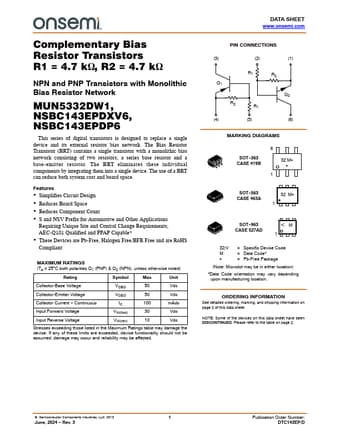

Preview of NSBC143EPDXV6 PDF
