NSBC143TPDXV6 - Complementary Bias Resistor Transistors

Complementary Bias Resistor Transistors R1 = 4.7 kW, R2 = 8 kW NPN and PNP Transistors with Monolithic Bias Resistor Network MUN5316DW1, NSBC143TPDXV6 This series of digital transistors is designed to replace a single device and its external resistor bias network.

The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor.

The BRT eliminates these individual components b

NSBC143TPDXV6 Features

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* These Devices are Pb

* Free, Halogen Free/B

NSBC143TPDXV6-ONSemiconductor.pdf

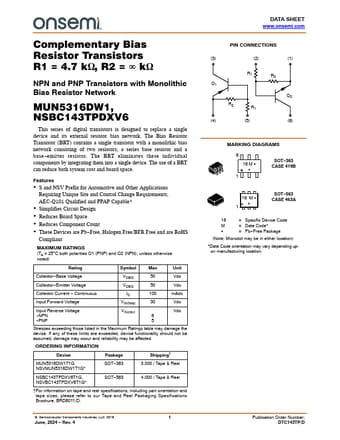

Preview of NSBC143TPDXV6 PDF
NSBC143TPDXV6 Datasheet Preview Page 2 NSBC143TPDXV6 Datasheet Preview Page 3

Datasheet Details

Part number:

NSBC143TPDXV6

Manufacturer:

ON Semiconductor ↗

File Size:

309.88 KB

Description:

Complementary bias resistor transistors.
