NTMFS4709N Datasheet - ON Semiconductor

NTMFS4709N Power MOSFET

NTMFS4709N Features

* ăLow RDS(on) to Minimize Conduction Losses

* ăLow Capacitance to Minimize Driver Losses

* ăOptimized Gate Charge to Minimize Switching Losses

* ăThese are Pb-Free Devices Applications http://onsemi.com V(BR)DSS 30 V RDS(on) Typ 2.85 mW @ 10 V 4.0 mW @ 4.5 V ID Max

NTMFS4709N_ONSemiconductor.pdf

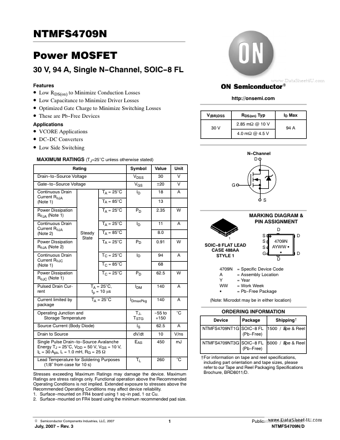

Preview of NTMFS4709N PDF
NTMFS4709N Datasheet Preview Page 2 NTMFS4709N Datasheet Preview Page 3

Datasheet Details

Part number:

NTMFS4709N

Manufacturer:

ON Semiconductor ↗

File Size:

111.94 KB

Description:

Power mosfet.
