NTMFS4936NC, NTMFS4936N N-Channel Power MOSFET

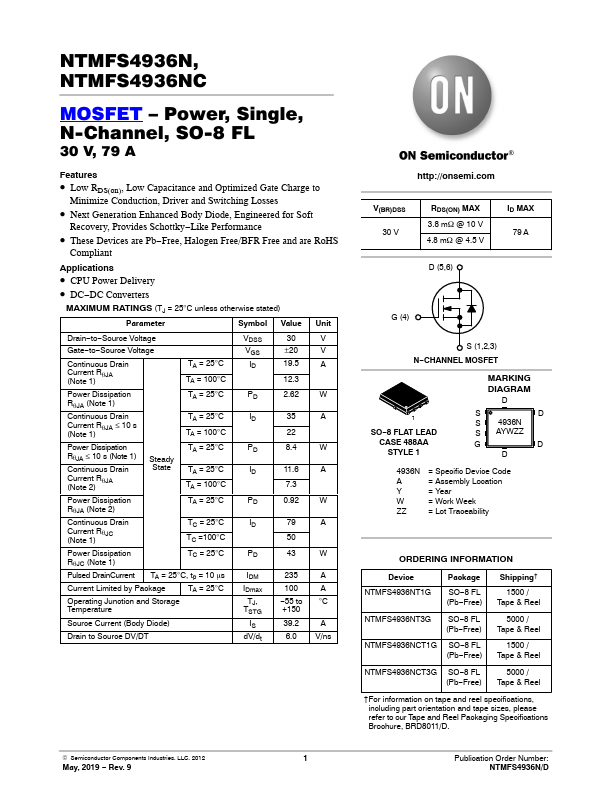

📥 Download Datasheet  Datasheet Preview Page 1

Description

NTMFS4936N, NTMFS4936NC MOSFET * Power, Single, N-Channel, SO-8 FL 30 V, 79 A .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NTMFS4936NC, NTMFS4936N. Please refer to the document for exact specifications by model.

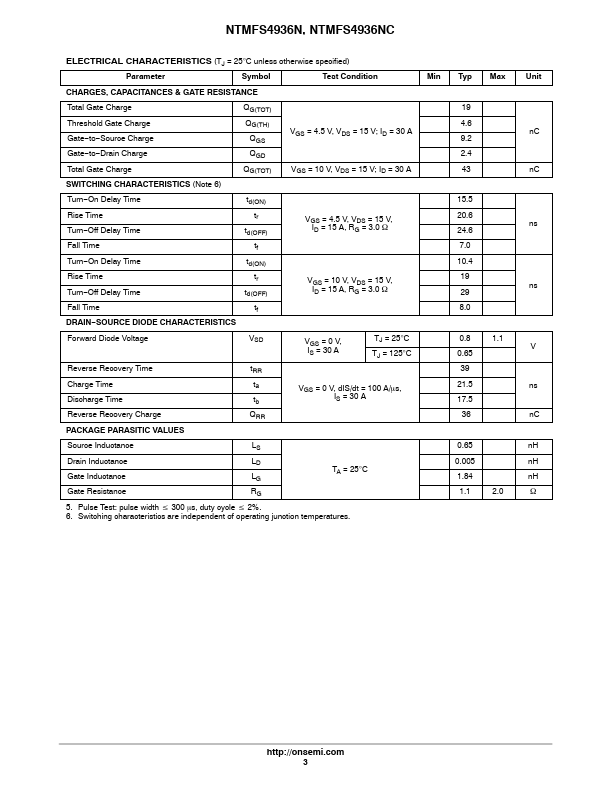

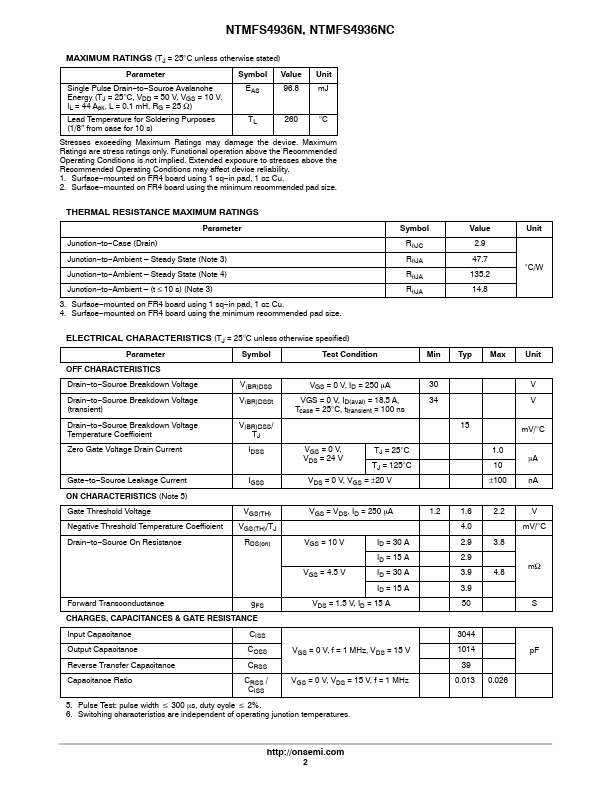

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
NTMFS4936NC, NTMFS4936N
Manufacturer
ON Semiconductor ↗
File Size
202.41 KB
Datasheet
NTMFS4936N_ONSemiconductor.pdf
Description
N-Channel Power MOSFET
Note
This datasheet PDF includes multiple part numbers: NTMFS4936NC, NTMFS4936N.
Please refer to the document for exact specifications by model.

Features

* Low RDS(on), Low Capacitance and Optimized Gate Charge to Minimize Conduction, Driver and Switching Losses
* Next Generation Enhanced Body Diode, Engineered for Soft Recovery, Provides Schottky
* Like Performance
* These Devices are Pb
* Free, Halogen Free/BFR F

Applications

* CPU Power Delivery
* DC
* DC Converters MAXIMUM RATINGS (TJ = 25°C unless otherwise stated) Parameter Symbol Value Unit Drain
* to
* Source Voltage Gate
* to
* Source Voltage Continuous Drain Current RqJA (Note 1) VDSS 30 V VGS ±20 V TA = 25°
