NTMFWS1D5N08X N-Channel Power MOSFET

ON Semiconductor

Description

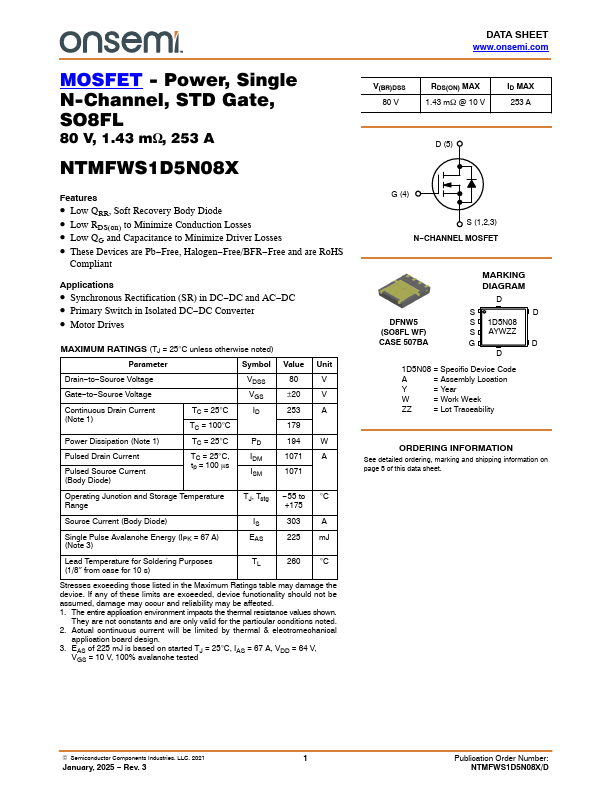

DATA SHEET www.onsemi.com MOSFET - Power, Single N-Channel, STD Gate, SO8FL 80 V, 1.43 mW, 253 A NTMFWS1D5N08X .

📥 Download Datasheet

NTMFWS1D5N08X Datasheet Preview — Preview of NTMFWS1D5N08X PDF

Datasheet Specifications

Part number: NTMFWS1D5N08X
Manufacturer: ON Semiconductor ↗
File Size: 236.32 KB
Datasheet: NTMFWS1D5N08X-ONSemiconductor.pdf
Description: N-Channel Power MOSFET

Features

* Low QRR, Soft Recovery Body Diode
* Low RDS(on) to Minimize Conduction Losses
* Low QG and Capacitance to Minimize Driver Losses
* These Devices are Pb
* Free, Halogen
* Free/BFR

Applications

* Synchronous Rectification (SR) in DC
* DC and AC
* DC
* Primary Switch in Isolated DC
* DC Converter
* Motor Drives MAXIMUM RATINGS (TJ = 25°C unless otherwise noted) Parameter Symbol Value Unit Drain
* to
* Source Voltage Gate
* to
