NTMTSC1D6N10MC - 100V 267A N-Channel Power MOSFET

ON Semiconductor

📥 Download Datasheet

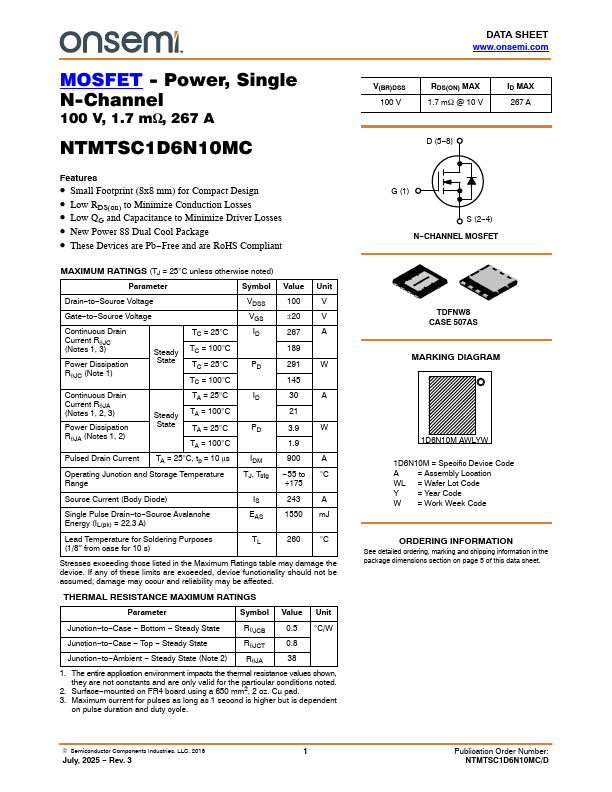

NTMTSC1D6N10MC Datasheet Preview — Preview of NTMTSC1D6N10MC PDF

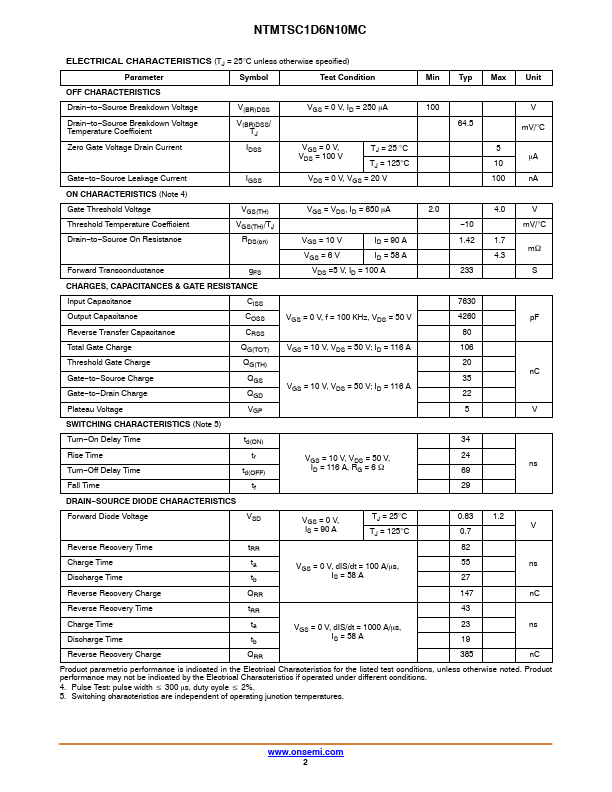

datasheet Preview Page 2

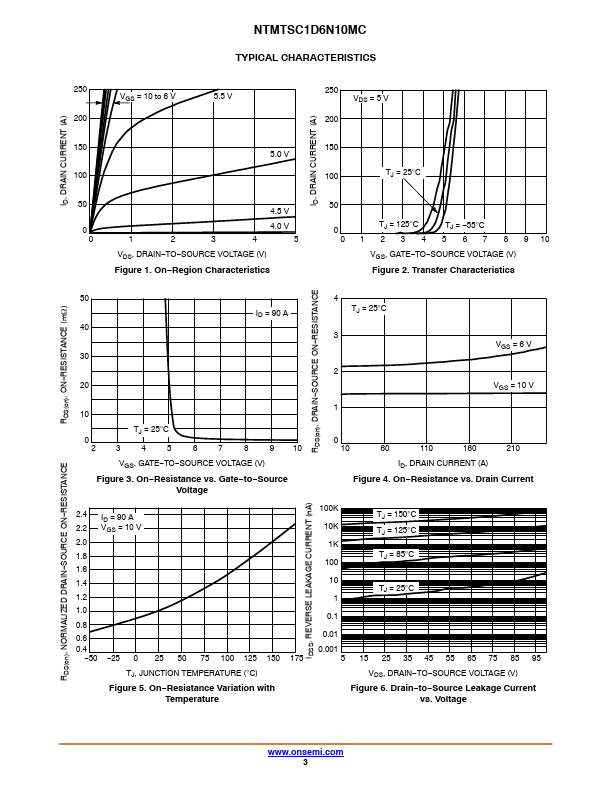

datasheet Preview Page 3

Datasheet Details

Part number: NTMTSC1D6N10MC
Manufacturer: ON Semiconductor ↗
File Size: 493.11 KB
Datasheet: NTMTSC1D6N10MC-ONSemiconductor.pdf
Description: 100V 267A N-Channel Power MOSFET

NTMTSC1D6N10MC Product details

Features

Small Footprint (8x8 mm) for Compact Design.
Low RDS(on) to Minimize Conduction Losses.
Low QG and Capacitance to Minimize Driver Losses.
New Power 88 Dual Cool Package.
These Devices are Pb.
Free and are RoHS Compliant.
