NVD4805N Power MOSFET

NVD4805N Description

NTD4805N, NVD4805N Power MOSFET 30 V, 88 A, Single N *Channel, DPAK/IPAK .

NVD4805N Features

* Low RDS(on) to Minimize Conduction Losses
* Low Capacitance to Minimize Driver Losses
* Optimized Gate Charge to Minimize Switching Losses

NVD4805N Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb
* Free and are RoHS Compliant Applications
* CPU Power Delivery
* DC
* DC Converters
* Low Side Switching MAXIMUM RATINGS (TJ = 25°C

📥 Download Datasheet

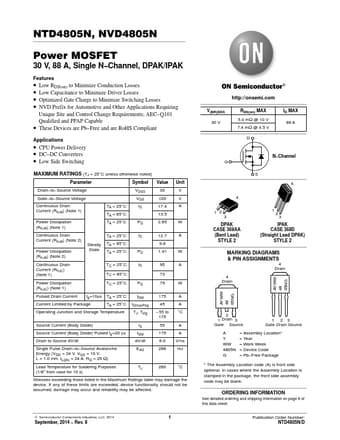

Preview of NVD4805N PDF
datasheet Preview Page 2 datasheet Preview Page 3
