NXH80B120H2Q0 Datasheet, Module, ON Semiconductor

NXH80B120H2Q0 Features

  • Module
  • Dual Boost 40 A / 1200 V IGBT + SiC Rectifier Hybrid Module
  • 1200 V FSII IGBT VCE(SAT) = 2.2 V
  • 1200 V SiC Diode VF = 1.4 V
  • Low Inductive Layout

PDF File Details

Part number:

NXH80B120H2Q0

Manufacturer:

ON Semiconductor ↗

File Size:

291.00kb

Download:

📄 Datasheet

Description:

Dual boost power module.

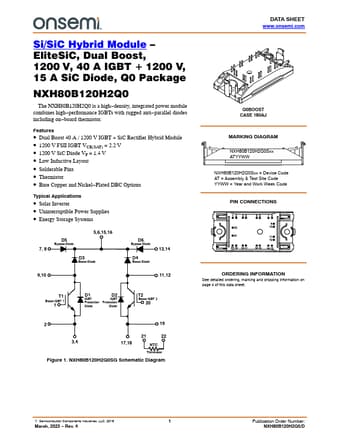

Datasheet Preview: NXH80B120H2Q0 📥 Download PDF (291.00kb)
Page 2 of NXH80B120H2Q0 Page 3 of NXH80B120H2Q0

NXH80B120H2Q0 Application

  • Applications
  • Solar Inverter
  • Uninterruptible Power Supplies
  • Energy Storage Systems 7, 8 D5 Bypass Diode 5,6,15,16 D
