NXH5104 - 4 Mbit Serial SPI EEPROM

Product Overview

NXP

📥 Download Datasheet

NXH5104 4 Mbit Serial SPI EEPROM by NXP - Datasheet Preview — Datasheet preview – NXH5104

Datasheet Details

Part number	NXH5104
Manufacturer	NXP
File Size	1.10 MB
Description	4 Mbit Serial SPI EEPROM
Datasheet	NXH5104 Datasheet

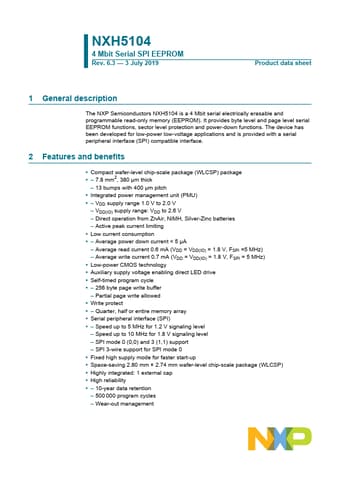

Additional preview pages of the NXH5104 datasheet.

Product details

Description

The NXP Semiconductors NXH5104 is a 4 Mbit serial electrically erasable and programmable read-only memory (EEPROM).

Features

Compact wafer-level chip-scale package (WLCSP) package.
7.8 mm2, 380 μm thick.
13 bumps with 400 μm pitch.
Integrated power management unit (PMU).
VDD supply range 1.0 V to 2.0 V.
VDD(IO) supply range: VDD to 2.6 V.
Direct operation from ZnAir, NiMH, Silver-Zinc batteries.
Active peak current limiting.
Low current consumption.
Average power down current < 5 μA.
Averag.
