NXH50C120L2C2ES1G, NXH50C120L2C2ESG Datasheet - ON Semiconductor

NXH50C120L2C2ES1G TMPIM 50A CIB/CI Module

TMPIM 50 A CIB/CI Module NXH50C120L2C2ESG, NXH50C120L2C2ES1G The NXH50C120L2C2ESG is a transfer molded power module with low thermal resistance substrate containing a converter-inverter-brake circuit consisting of six 50 A, 1600 V rectifiers, six 50 A, 1200 V IGBTs with inverse diodes, one 35 A, 1200 V brake IGBT with brake diode and an NTC thermistor. The NXH50C120L2C2ES1G is a transfer molded power module with low thermal resistance substrate containing a converter inve.

NXH50C120L2C2ES1G Features

* Low Thermal Resistance Substrate for Low Thermal Resistance

* Lower Package Height than Standard Case Modules

* 6 mm Clearance distance between pin to heatsink

* Compact 73 mm × 40 mm × 8 mm Package

* Solderable Pins

* Thermistor

* These Devi

NXH50C120L2C2ESG-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: NXH50C120L2C2ES1G, NXH50C120L2C2ESG. Please refer to the document for exact specifications by model.

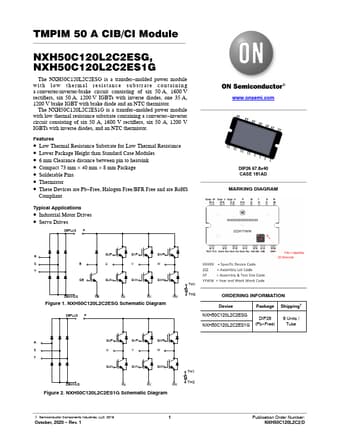

NXH50C120L2C2ES1G Datasheet Preview Page 2 NXH50C120L2C2ES1G Datasheet Preview Page 3

Datasheet Details

Part number:

NXH50C120L2C2ES1G, NXH50C120L2C2ESG

Manufacturer:

ON Semiconductor ↗

File Size:

416.41 KB

Description:

Tmpim 50a cib/ci module.

Note:

This datasheet PDF includes multiple part numbers: NXH50C120L2C2ES1G, NXH50C120L2C2ESG.
Please refer to the document for exact specifications by model.
