NXH800H120L7QDSG Datasheet, Igbt, ON Semiconductor

NXH800H120L7QDSG Features

  • Igbt
  • 1200 V, 800 A 2 in 1 Half Bridge Configuration IGBT Power Module
  • Field Stop Trench 7 IGBTs & Gen.7 Diodes
  • NTC Thermistor
  • Isolated Base Plate

PDF File Details

Part number:

NXH800H120L7QDSG

Manufacturer:

ON Semiconductor ↗

File Size:

448.06kb

Download:

📄 Datasheet

Description:

Half-bridge igbt. The NXH800H120L7QDSG is a 1200 V 800 A rated half bridge IGBT power module. The integrated Field Stop Trench 7 IGBTs and Gen. 7 diode

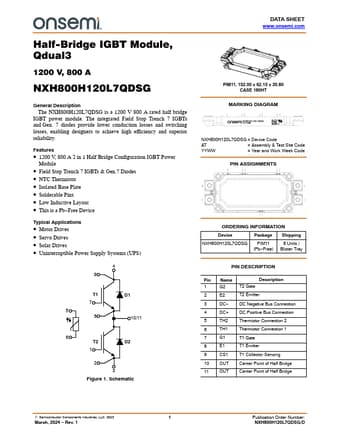

Datasheet Preview: NXH800H120L7QDSG 📥 Download PDF (448.06kb)
Page 2 of NXH800H120L7QDSG Page 3 of NXH800H120L7QDSG

NXH800H120L7QDSG Application

  • Applications
  • Motor Drives
  • Servo Drives
  • Solar Drives
  • Uninterruptible Power Supply Systems (UPS) 4 9 T1 7 5 8
