NXV08H250DPT2

Automotive Power MOSFET Module

NXV08H250DPT2 Features

* 2 Phase MOSFET Module At Customer Side this Module Can Be Used as 1/2 Bridge MOSFET Module by Combining 2 Phase Out Power Terminals

* Electrically Isolated DBC Substrate for Low Rthjc

* Compact Design for Low Total Module Resistance

* Module Serialization for Full Traceability

NXV08H250DPT2 General Description

Pin No. 1 Q2 Gate 2 Q2 Source Sense 3 B+ #2 Sense 4 Phase Out 2 5 Q4 Source Sense 6 Q4 Gate 7 NTC1 8 NTC2 9 Q3 Gate 10 Q3 Source Sense 11 Phase Out 1 12 B+ #1 Sense 13 Q1 Source Sense 14 Q1 Gate 15 B+ #1 16 GND 17 B+ #2 Description Remark Q2 Source Sense & Q4 Dra.

NXV08H250DPT2 Datasheet (585.44 KB)

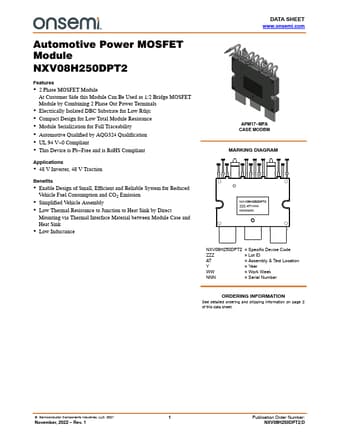

Preview of NXV08H250DPT2 PDF

Datasheet Details

Part number:

NXV08H250DPT2

Manufacturer:

ON Semiconductor ↗

File Size:

585.44 KB

Description:

Automotive power mosfet module.
