P1014AP10 Self-Supplied Monolithic Switcher

Pin No. (SOT *223) Pin No. (PDIP *7) Pin Name Function Description 1 1 VCC Powers the Internal Circuitry This pin is connected to an external capacitor of typic- ally 10 mF. The natural ripple superimposed on the VCC participates to the frequency jittering. For improved stan.

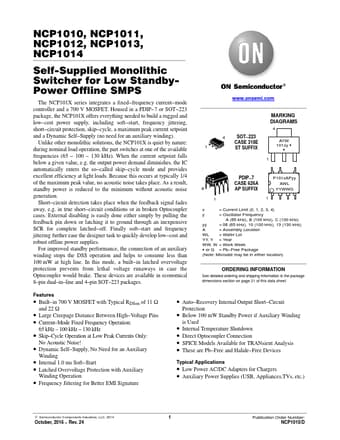

NCP1010, NCP1011, NCP1012, NCP1013, NCP1014 Self-Supplied Monolithic Switcher for Low StandbyPower Offline SMPS The NCP101X series integrates a fixed frequency current mode controller and a 700 V MOSFET. Housed in a PDIP 7 or SOT 223 package, the NCP101X offers everything needed to build a rugged and low cost power supply, including soft start, frequency jittering, short circuit protection, skip cycle, a maximum peak current setpoi.

P1014AP10 Features

* Built

* in 700 V MOSFET with Typical RDSon of 11 W and 22 W

* Large Creepage Distance Between High

* Voltage Pins

* Current

* Mode Fixed Frequency Operation: 65 kHz

* 100 kHz

* 130 kHz

* Skip

* Cycle Operation at Low Peak Curr
