SN74LS377 Datasheet - ON Semiconductor

SN74LS377 Octal D Flip-Flop

SN74LS377 Octal D Flip Flop with Enable The SN74LS377 is an 8-bit register built using advanced Low Power Schottky technology. This register consists of eight D-type flip-flops with a buffered common clock and a buffered common clock enable. 8-Bit High Speed Parallel Registers Positive Edge-Triggered D-Type Flip Flops Fully Buffered Common Clock and Enable Inputs True and Complement Outputs Input Clamp Diodes Limit High Speed Termination.

SN74LS377_ONSemiconductor.pdf

Preview of SN74LS377 PDF

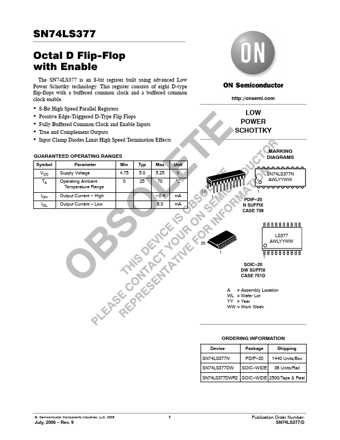

SN74LS377 Datasheet Preview Page 2 SN74LS377 Datasheet Preview Page 3

Datasheet Details

Part number:

SN74LS377

Manufacturer:

ON Semiconductor ↗

File Size:

168.05 KB

Description:

Octal d flip-flop.
