SN74LS375, SN74LS375D Datasheet - Motorola

SN74LS375 4-BIT D LATCH

4-BIT D LATCH The SN54/ 74LS375 is a 4-Bit D-Type Latch for use as temporary storage for binary information between processing limits and input /output or indicator units. When the Enable (E) is HIGH, information present at the D input will be transferred to the Q output and, if E is HIGH, the Q output will follow the input. When E goes LOW, the information present at the D input prior to its setup time will be retained at the Q outputs. VCC 16 CONNECTION DIAGRAM DIP (TOP VIEW) D3 Q3 Q3 E2.

SN74LS375D_MotorolaInc.pdf

This datasheet PDF includes multiple part numbers: SN74LS375, SN74LS375D. Please refer to the document for exact specifications by model.

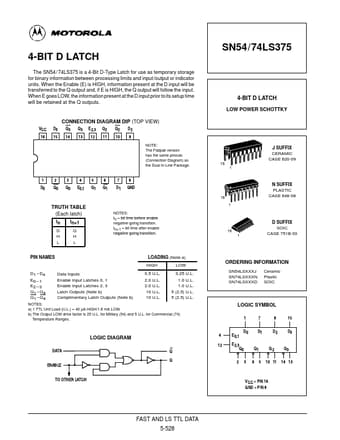

SN74LS375 Datasheet Preview Page 2 SN74LS375 Datasheet Preview Page 3

Datasheet Details

Part number:

SN74LS375, SN74LS375D

Manufacturer:

Motorola

File Size:

163.97 KB

Description:

4-bit d latch.

Note:

This datasheet PDF includes multiple part numbers: SN74LS375, SN74LS375D.
Please refer to the document for exact specifications by model.
