SN74LS378 OCTAL D FLIP-FLOP

OCTAL D FLIP-FLOP WITH ENABLE; HEX D FLIP-FLOP WITH ENABLE; 4-BIT D FLIP-FLOP WITH ENABLE The SN54 / 74LS377 is an 8-bit register built using advanced Low Power Schottky technology. This register consists of eight D-type flip-flops with a buffered common clock and a buffered common clock enable. The SN54 / 74LS378 is a 6-Bit Register with a buffered common enable. This device is similar to the SN54 / 74LS174, but with common Enable rather than common Master Reset. The SN54 / 74LS379 is a 4-Bit R.

SN74LS378 Features

* the common Enable rather then common Master Reset.

* 8-Bit High Speed Parallel Registers

* Positive Edge-Triggered D-Type Flip Flops

* Fully Buffered Common Clock and Enable Inputs

* True and Complement Outputs

* Input Clamp Diodes Limit High Speed Termination

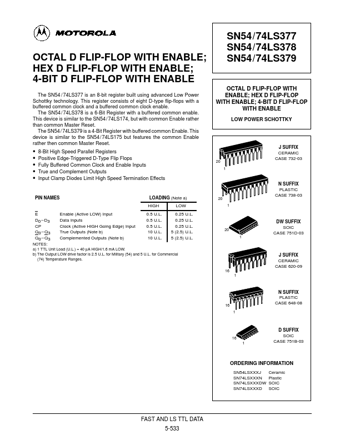

SN74LS377D_MotorolaInc.pdf

SN74LS378 Datasheet Preview — This datasheet PDF includes multiple part numbers: SN74LS378, SN74LS377D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SN74LS378, SN74LS377D

Manufacturer:

Motorola

File Size:

250.77 KB

Description:

Octal d flip-flop.

Note:

This datasheet PDF includes multiple part numbers: SN74LS378, SN74LS377D.
Please refer to the document for exact specifications by model.
