SURS8320T3G-ONSemiconductor.pdf
Datasheet Details
Part number:
SURS8320T3G-VF01, SURS8320T3G
Manufacturer:
File Size:
176.06 KB
Description:
Surface mount ultrafast power rectifiers.
Note:
This datasheet PDF includes multiple part numbers: SURS8320T3G-VF01, SURS8320T3G.
Please refer to the document for exact specifications by model.

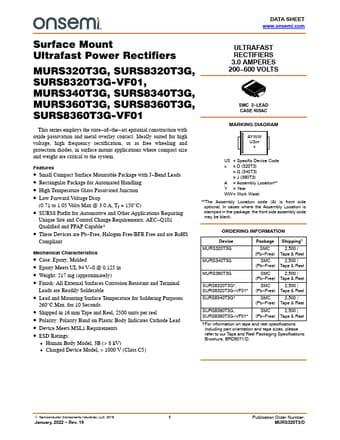

DATA SHEET www.onsemi.com Surface Mount Ultrafast Power Rectifiers MURS320T3G, SURS8320T3G, SURS8320T3G-VF01, MURS340T3G, SURS8340T3G, MURS360T3G, SURS8360T3G, SURS8360T3G-VF01 This series employs the state of the art epitaxial construction with oxide passivation and metal overlay contact.
Ideally suited for high voltage, high frequency rectification, or as free wheeling and protection diodes, in surface mount applications where compact size and weight are critical to th
SURS8320T3G-VF01 Features
* Small Compact Surface Mountable Package with J
* Bend Leads
* Rectangular Package for Automated Handling
* High Temperature Glass Passivated Junction
* Low Forward Voltage Drop (0.71 to 1.05 Volts Max @ 3.0 A, TJ = 150°C)
* SURS8 Prefix for Automotive
