MJH11022 Complementary Darlington Silicon Power Transistors

📥 Download Datasheet Datasheet Preview Page 1

Description

MJH11017, MJH11019, MJH11021 (PNP) MJH11018, MJH11020, MJH11022 (NPN) Complementary Darlington Silicon Power Transistors These devices are designed f.

📥 Download Datasheet

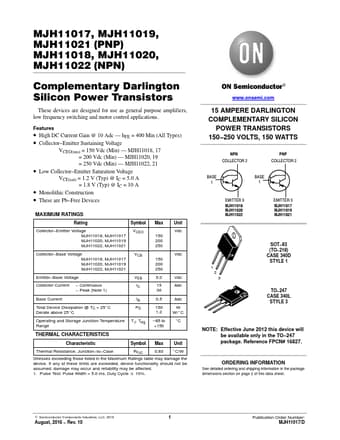

Preview of MJH11022 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MJH11022
Manufacturer
ON
File Size
86.06 KB
Datasheet
MJH11022_ONSemiconductor.pdf
Description
Complementary Darlington Silicon Power Transistors

Features

* High DC Current Gain @ 10 Adc
* hFE = 400 Min (All Types)
* Collector
* Emitter Sustaining Voltage VCEO(sus) = 150 Vdc (Min)
* MJH11018, 17 = 200 Vdc (Min)
* MJH11020, 19 = 250 Vdc (Min)
* MJH11022, 21
* Low Collector
* Emitter Sa
