OCH29803 - 300mA Single Phase Hall-Effect DC Fan Driver

This page provides the datasheet information for the OCH29803, a member of the OCH29803-ORIENT 300mA Single Phase Hall-Effect DC Fan Driver family.

Datasheet Summary

Description

The OCH29803 is an integrated Hall sensor with H-Bridged output driver designed for brushless DC motor applications.

Features

One-chip Solution (Hall Element + Driver).
Input Voltage Range : 3V to 28V.
Low Output.

ORIENT-CHIP

📥 Download Datasheet

Datasheet Details

Part number	OCH29803
Manufacturer	ORIENT-CHIP
File Size	214.19 KB
Description	300mA Single Phase Hall-Effect DC Fan Driver
Datasheet	OCH29803 Datasheet

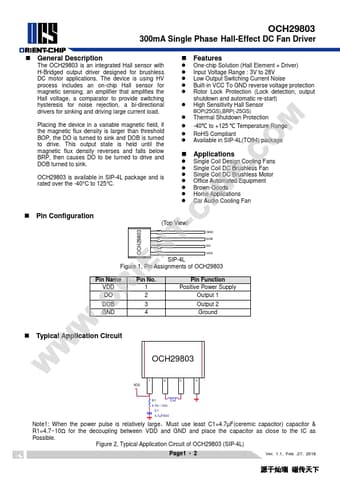

Additional preview pages of the OCH29803 datasheet.

📁 Similar Datasheet

OCH2980 - Two Phase Hall-Effect Smart Fan Motor Controller (Orient Chip)
OCH2981 - Two Phase Hall-Effect Smart Fan Motor Controller (Orient Chip)
OCH2986 - Single Phase Hall-Effect DC Fan Driver (Orient Chip)
OCH2987 - 350mA Single Phase Hall-Effect DC Fan Driver (Orient Chip)
OCH2988 - 500mA Single Phase Hall-Effect DC Fan Driver (Orient Chip)
OCH211 - 2-Phase DC Motor Drive IC (Orient Chip)
OCH266 - Two Phase Complementary Output Hall-Effect DC Motor Driver (Orient Chip)
OCH277H - Hall sensor (Orient Chip)
OCH140 - Bipolar Hall Effect Position Sensor (Orient Chip)
OCH141 - Bipolar Hall Effect Position Sensor (Orient Chip)

Other Datasheets by ORIENT-CHIP

OCH29891 - 500mA Single Phase DC Fan Driver

Full PDF Text Transcription

Click to expand full text

W W W OCH29803.ORIENT-CHIP.COM 1 234 OCH29803 300mA Single Phase Hall-Effect DC Fan Driver ◼ General Description The OCH29803 is an integrated Hall sensor with H-Bridged output driver designed for brushless DC motor applications. The device is using HV process includes an on-chip Hall sensor for magnetic sensing, an amplifier that amplifies the Hall voltage, a comparator to provide switching hysteresis for noise rejection, a bi-directional drivers for sinking and driving large current load. Placing the device in a variable magnetic field, if the magnetic flux density is larger than threshold BOP, the DO is turned to sink and DOB is turned to drive.

Published: Apr 3, 2019 |
