OCH211 Datasheet - Orient Chip

OCH211 2-Phase DC Motor Drive IC

The OCH211, a one-chip composed of hall sensor and output coil drivers, applied to 2-phase DC motor. The high sensitivity of Hall effect sensor is suitable for motors from mini-type CPU coolers to blowers and DC fans. Typical operation current is 0.4A and operating voltage range is wide. FG signal, .

OCH211 Features

* One-chip Solution (Hall Element + Driver)

* Input Voltage Range : 3.0V to 20V

* For DC motor / Fan Systems

* Low Cost Solution

* High Sensitivity Hall Sensor

* Output Continues Current: 400mA

* Built-in FG ou

OCH211 Datasheet (186.39 KB)

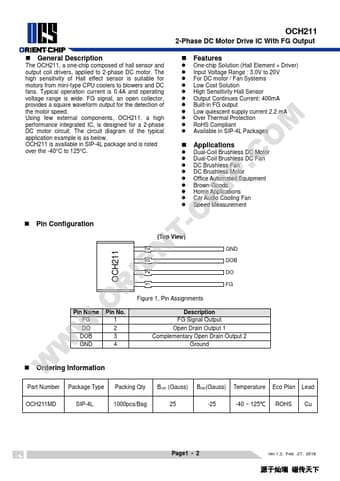

OCH211 Datasheet Preview — Preview of OCH211 PDF

Datasheet Details

Part number:

OCH211

Manufacturer:

Orient Chip

File Size:

186.39 KB

Description:

2-phase dc motor drive ic.
