OCH2986

Single Phase Hall-Effect DC Fan Driver

OCH2986 Features

* One-chip Solution (Hall Element + Driver)

* Input Voltage Range : 3.5V to 20V

* For Single Coil DC motor / Fan

OCH2986 General Description

The OCH2986 is an integrated Hall sensor with H-Bridged output driver designed for brushless DC motor applications. The device is using HV BCD process includes an on-chip Hall sensor for magnetic sensing, an amplifier that amplifies the Hall voltage, a comparator to provide switching hysteresis for .

OCH2986 Datasheet (219.71 KB)

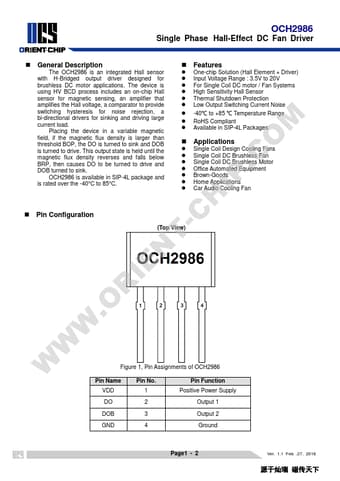

Preview of OCH2986 PDF

Datasheet Details

Part number:

OCH2986

Manufacturer:

Orient Chip

File Size:

219.71 KB

Description:

Single phase hall-effect dc fan driver.
