OLS-150R-CD-T

Series 150 - 1206 Standard low cost

OLS-150R-CD-T Features

* size 1206: 3,2(L) x 1,6(W) x 1,2(H) mm circuit substrate: glass laminated epoxy devices are ROHS conform lead free solderable, soldering pads: gold plated taped in 8 mm blister tape, cathode to transporting perforation - all devices sorted into luminous intensity classes - taping: face-up (T) or fac

OLS-150R-CD-T Datasheet (152.70 KB)

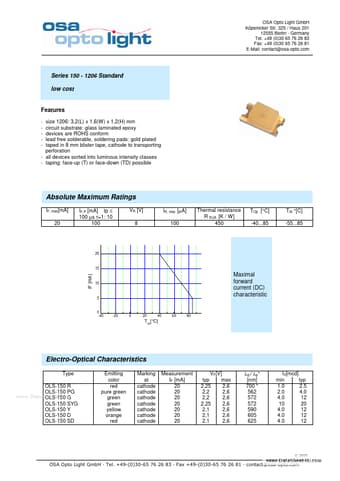

Preview of OLS-150R-CD-T PDF

Datasheet Details

Part number:

OLS-150R-CD-T

Manufacturer:

OSA Opto Light GmbH

File Size:

152.70 KB

Description:

Series 150 - 1206 standard low cost.
OSA Opto Light GmbH Köpenicker Str. 325 / Haus 201 12555 Berlin - Germany Tel. +49 (0)30 65 76 26 83 Fax: +49 (0)30 65 76 26 81 E-Mail: contact@osa-op.
