OLS-152HY-X-T

Series 152 - 1206 - Bipolar monocolor High luminous intensity

OLS-152HY-X-T Features

* size 1206: 3,2(L) x 1,6(W) x 1,2(H) mm circuit substrate: glass laminated epoxy devices are ROHS conform lead free solderable, soldering pads: gold plated taped in 8 mm blister tape all devices sorted into luminous intensity classes taping: face-up (T) or face-down (TD) possible high luminous intens

OLS-152HY-X-T Datasheet (154.91 KB)

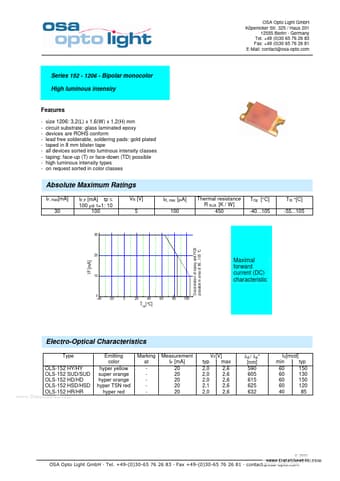

Preview of OLS-152HY-X-T PDF

Datasheet Details

Part number:

OLS-152HY-X-T

Manufacturer:

OSA Opto Light GmbH

File Size:

154.91 KB

Description:

Series 152 - 1206 - bipolar monocolor high luminous intensity.
OSA Opto Light GmbH Köpenicker Str. 325 / Haus 201 12555 Berlin - Germany Tel. +49 (0)30 65 76 26 83 Fax: +49 (0)30 65 76 26 81 E-Mail: contact@osa-op.
