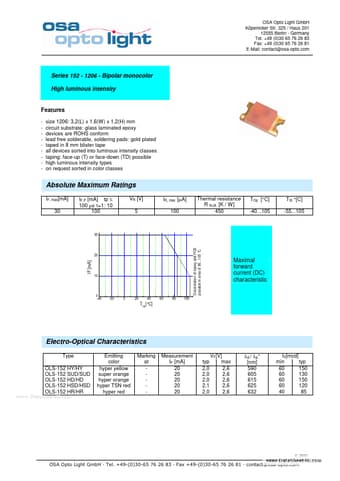

OLS-152HY - Series 152 - 1206 - Bipolar monocolor High luminous intensity

Datasheet Details

size 1206: 3,2(L) x 1,6(W) x 1,2(H) mm circuit substrate: glass laminated epoxy devices are ROHS conform lead free solderable, soldering pads: gold plated taped in 8 mm blister tape all devices sorted into luminous intensity classes taping: face-up (T) or face-down (TD) possible high luminous intensity types on request sorted in color classes Absolute Maximum Ratings IF, max[mA] 30 IF,P [mA] tp ≤ 100 µs τ=1: 10 100 VR [V] 5 IR, max [µA] 100 Thermal resistance R thJA [K / W] 450 TOp [°C] -40105.
