OM5302, OM5301 (OM5301 - OM5304) ULTRA LOW FORWARD VOLTAGE CENTER-TAP POWER RECTIFIER

OM5302 Description

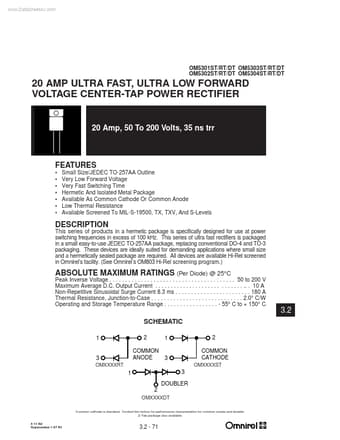

www.DataSheet4U.com OM5301ST/RT/DT OM5303ST/RT/DT OM5302ST/RT/DT OM5304ST/RT/DT 20 AMP ULTRA FAST, ULTRA LOW FORWARD VOLTAGE CENTER-TAP POWER RECTIF.
This series of products in a hermetic package is specifically designed for use at power switching frequencies in excess of 100 kHz.

OM5302 Features

* Small Size/JEDEC TO-257AA Outline Very Low Forward Voltage Very Fast Switching Time Hermetic And Isolated Metal Package Available As Common Cathode Or Common Anode Low Thermal Resistance Available Screened To MIL-S-19500, TX, TXV,

OM5302 Applications

* where small size and a hermetically sealed package are required. All devices are available Hi-Rel screened in Omnirel’s facility. (See Omnirel’s OM803 Hi-Rel screening program. ) ABSOLUTE MAXIMUM RATINGS (Per Diode) @ 25°C Peak Inverse Voltage
