OM5304

(OM5301 - OM5304) ULTRA LOW FORWARD VOLTAGE CENTER-TAP POWER RECTIFIER

OM5304 Features

* Small Size/JEDEC TO-257AA Outline Very Low Forward Voltage Very Fast Switching Time Hermetic And Isolated Metal Package Available As Common Cathode Or Common Anode Low Thermal Resistance Available Screened To MIL-S-19500, TX, TXV,

OM5304 General Description

This series of products in a hermetic package is specifically designed for use at power switching frequencies in excess of 100 kHz. This series of ultra fast rectifiers is packaged in a small easy-to-use JEDEC TO-257AA package, replacing conventional DO-4 and TO-3 packaging. These devices are ideall.

OM5304 Datasheet (44.37 KB)

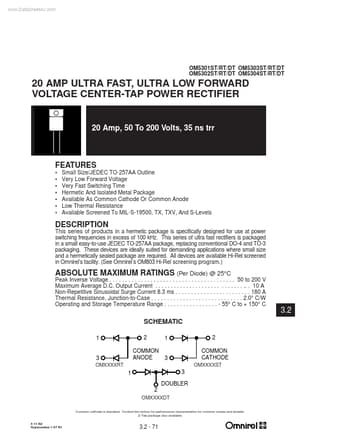

Preview of OM5304 PDF

Datasheet Details

Part number:

OM5304

Manufacturer:

Omnirel

File Size:

44.37 KB

Description:

(om5301 - om5304) ultra low forward voltage center-tap power rectifier.
www.DataSheet4U.com OM5301ST/RT/DT OM5303ST/RT/DT OM5302ST/RT/DT OM5304ST/RT/DT 20 AMP ULTRA FAST, ULTRA LOW FORWARD VOLTAGE CENTER-TAP POWER RECTIF.
