OM5303, OM5301 (OM5301 - OM5304) ULTRA LOW FORWARD VOLTAGE CENTER-TAP POWER RECTIFIER

OM5303 Description

www.DataSheet4U.com OM5301ST/RT/DT OM5303ST/RT/DT OM5302ST/RT/DT OM5304ST/RT/DT 20 AMP ULTRA FAST, ULTRA LOW FORWARD VOLTAGE CENTER-TAP POWER RECTIF.
This series of products in a hermetic package is specifically designed for use at power switching frequencies in excess of 100 kHz.

OM5303 Features

* Small Size/JEDEC TO-257AA Outline Very Low Forward Voltage Very Fast Switching Time Hermetic And Isolated Metal Package Available As Common Cathode Or Common Anode Low Thermal Resistance Available Screened To MIL-S-19500, TX, TXV,

OM5303 Applications

* where small size and a hermetically sealed package are required. All devices are available Hi-Rel screened in Omnirel’s facility. (See Omnirel’s OM803 Hi-Rel screening program. ) ABSOLUTE MAXIMUM RATINGS (Per Diode) @ 25°C Peak Inverse Voltage

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OM5303, OM5301. Please refer to the document for exact specifications by model.

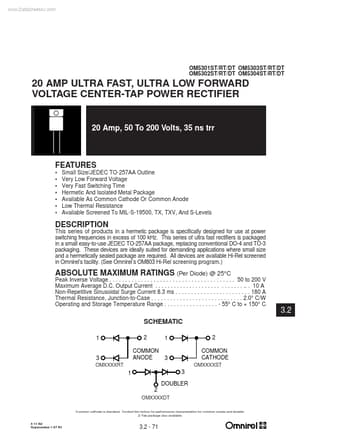

datasheet Preview Page 2
