OM4005ST, OM4003ST (OM4003ST - OM4007ST) 10 AMP SCHOTTKY RECTIFIER

OM4005ST Description

OM4003ST OM4005ST OM4007ST OM4004ST OM4006ST 10 AMP SCHOTTKY RECTIFIER IN SMALL HERMETIC PACKAGE 10 Amp, 60 To 100 Volt Schottky Rectifiers .
This series of Schottky barrier diodes offers low forward voltage and high output current for its small package size.

OM4005ST Applications

* where small size, light weight and high reliability are required. These devices are ideal replacements for TO-3, DO-4 or DO-5 packages. All products are available Hi-Rel screened. PIN CONNECTION MECHANICAL OUTLINE .420 .410 .200 .190 .045 .035 .150 .140 .665 .645 .537 .527 .430 .410 .038 MAX. 3

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OM4005ST, OM4003ST. Please refer to the document for exact specifications by model.

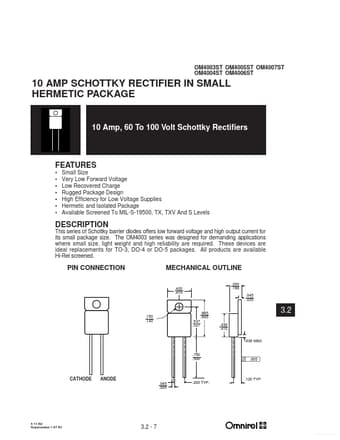

datasheet Preview Page 2

Datasheet Details

Part number
OM4005ST, OM4003ST
Manufacturer
Omnlrel
File Size
38.03 KB
Datasheet
OM4003ST-Omnlrel.pdf
Description
(OM4003ST - OM4007ST) 10 AMP SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: OM4005ST, OM4003ST.
Please refer to the document for exact specifications by model.
