OM4201ST - 45 Volt Rating Center-Tap Rectifier

Name: OM4201ST
SKU: OM4201ST-507903

📥 Download Datasheet

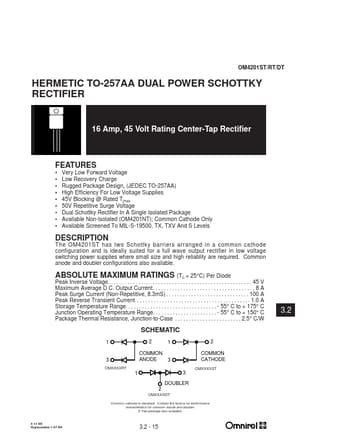

OM4201ST Datasheet Preview — Preview of OM4201ST PDF

Datasheet Details

Part number	OM4201ST
Manufacturer	ETC
File Size	18.32 KB
Description	45 Volt Rating Center-Tap Rectifier
Datasheet	OM4201ST_ETC.pdf

OM4201ST Product details

Description

The OM4201ST has two Schottky barriers arranged in a common cathode configuration and is ideally suited for a full wave output rectifier in low voltage switching power supplies where small size and high reliablity are required. .

Features

Very Low Forward Voltage Low Recovery Charge Rugged Package Design, (JEDEC TO-257AA) High Efficiency For Low Voltage Supplies 45V Blocking @ Rated Tjmax 50V Repetitive Surge Voltage Dual Schottky Rectifier In A Single Isolated Package Available Non-Isolated (OM4201NT); Common Cathode Only Available Screened To MIL-S-19500, TX, TXV And S Levels.
