OM4202SC, OM4202DC - DUAL POWER SCHOTTKY RECTIFIER

Name: OM4202SC
SKU: OM4202SC-1259295

Omnlrel

📥 Download Datasheet

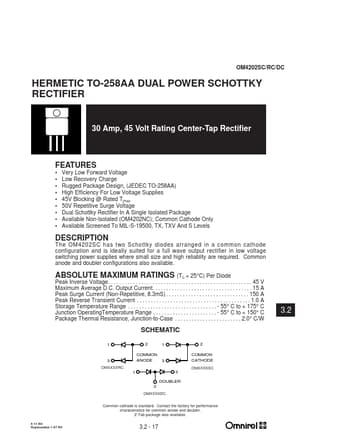

OM4202SC Datasheet Preview — This datasheet PDF includes multiple part numbers: OM4202SC, OM4202DC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	OM4202SC, OM4202DC
Manufacturer	Omnlrel
File Size	17.56 KB
Description	DUAL POWER SCHOTTKY RECTIFIER
Datasheet	OM4202DC_ETC.pdf
Note	This datasheet PDF includes multiple part numbers: OM4202SC, OM4202DC. Please refer to the document for exact specifications by model.

OM4202SC Product details

Description

The OM4202SC has two Schottky diodes arranged in a common cathode configuration and is ideally suited for a full wave output rectifier in low voltage switching power supplies where small size and high reliablity are required. .

Features

Very Low Forward Voltage.
Low Recovery Charge.
Rugged Package Design, (JEDEC TO-258AA).
High Efficiency For Low Voltage Supplies.
45V Blocking @ Rated Tjmax.
50V Repetitive Surge Voltage.
Dual Schottky Rectifier In A Single Isolated Package.
Available Non-Isolated (OM4202NC); Common Cathode Only.
Available Screened To MIL-S-19500, TX, TXV And S Levels.
