OM4206DT, OM4206 DUAL POWER SCHOTTKY RECTIFIER

OM4206DT Description

OM4206ST/RT/DT OM4226ST/RT/DT HERMETIC TO-257AA DUAL POWER SCHOTTKY RECTIFIER 16 Amp, 60 and 100 Volt Rating Center-Tap Rectifier .
This product is specifically designed for use at power switching frequencies in excess of 100 kHz.

OM4206DT Features

* Very Low Forward Voltage
* Fast Switching Speed
* Hermetic Metal Package, TO-257AA Outline
* Low Thermal Resistance
* Isolated Package

OM4206DT Applications

* where small size and hermetically sealed package is required. ABSOLUTE MAXIMUM RATINGS (TC = 25°C) Per Diode Peak Inverse Voltage
* . . . . OM4226ST=60V/OM4206ST=100 V Maximum Average D. C. Output Current
* . . . .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OM4206DT, OM4206. Please refer to the document for exact specifications by model.

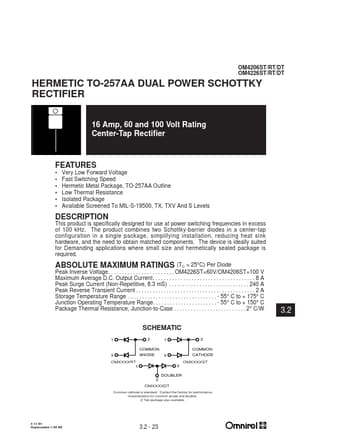

datasheet Preview Page 2

Datasheet Details

Part number
OM4206DT, OM4206
Manufacturer
Omnlrel
File Size
18.27 KB
Datasheet
OM4206_ETC.pdf
Description
DUAL POWER SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: OM4206DT, OM4206.
Please refer to the document for exact specifications by model.
