OM4202DC

DUAL POWER SCHOTTKY RECTIFIER

OM4202DC Features

* Very Low Forward Voltage Low Recovery Charge Rugged Package Design, (JEDEC TO-258AA) High Efficiency For Low Voltage Supplies 45V Blocking @ Rated Tjmax 50V Repetitive Surge Voltage Dual Schottky Rectifier In A

OM4202DC General Description

The OM4202SC has two Schottky diodes arranged in a common cathode configuration and is ideally suited for a full wave output rectifier in low voltage switching power supplies where small size and high reliablity are required. Common anode and doubler configurations also available. Peak Inverse Volta.

OM4202DC Datasheet (17.56 KB)

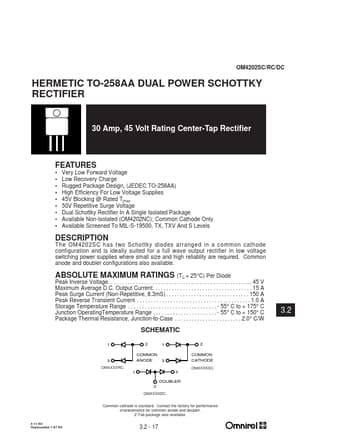

Preview of OM4202DC PDF

Datasheet Details

Part number:

OM4202DC

Manufacturer:

ETC

File Size:

17.56 KB

Description:

Dual power schottky rectifier.
