OM4201DT 45 Volt Rating Center-Tap Rectifier

The OM4201ST has two Schottky barriers arranged in a common cathode configuration and is ideally suited for a full wave output rectifier in low voltage switching power supplies where small size and high reliablity are required. Common anode and doubler configurations also available. ABSOLUTE MAXIMU.

OM4201DT Features

* Very Low Forward Voltage

* Low Recovery Charge

* Rugged Package Design, (JEDEC TO-257AA)

* High Efficiency For Low Voltage Supplies

* 45V Blocking @ Rated Tjmax

* 50V Repetitive Surge Voltage

* Dual Schottky Rectifier In A Single Isolated Pac

OM4201ST_ETC.pdf

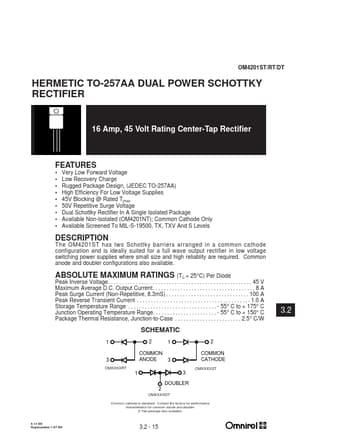

OM4201DT Datasheet Preview — This datasheet PDF includes multiple part numbers: OM4201DT, OM4201ST. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

OM4201DT, OM4201ST

Manufacturer:

Omnlrel

File Size:

18.32 KB

Description:

45 volt rating center-tap rectifier.

Note:

This datasheet PDF includes multiple part numbers: OM4201DT, OM4201ST.
Please refer to the document for exact specifications by model.
