SB2520FCT SCHOTTKY BARRIER RECTIFIER

SB2520FCT Description

SB2520FCT thru SB25150FCT SCHOTTKY BARRIER RECTIFIER VOLTAGE - 20 TO 150 VOLTS CURRENT - 25 AMPERES ITO-220AB .

SB2520FCT Features

* Plastic Package has Underwriters Laboratory Flammability Classification 94-0 utilizing Flame Retardant Epoxy Molding Compound Exceeds environmental standards of MIL-S-19500/228 Low power loss, gigh efficiency Low Forward Voltage, high Current Capability High surge Capability For use low Voltage, hig

SB2520FCT Applications

* High temperature soldering 260oC/10seconds at terminals Pb free product are available 99% Sn above can meet RoHS environment substance directive request MECHANICAL DATA Case ITO220AB Molded plastic Terminals Lead solderable per MIL-STD-202, Method 208 Polarity As Marked on Body Mounting Position An

📥 Download Datasheet

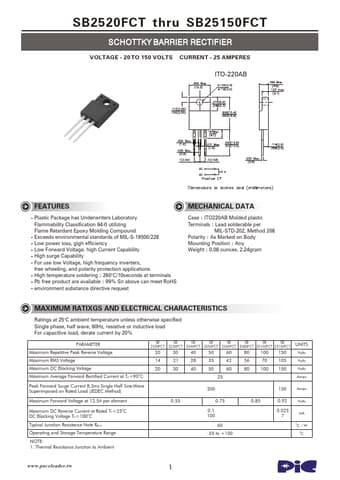

Preview of SB2520FCT PDF
datasheet Preview Page 2

Datasheet Details

Part number
SB2520FCT
Manufacturer
PACELEADER
File Size
256.65 KB
Datasheet
SB2520FCT-PACELEADER.pdf
Description
SCHOTTKY BARRIER RECTIFIER
