SB230, SB220 - SCHOTTKY BARRIER RECTIFIERS

SB230 Description

SB220 SERIES SCHOTTKY BARRIER RECTIFIERS VOLTAGE 20 to 60 Volt CURRENT 2.0 Ampere .

SB230 Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound.
* Exceeds environmental standards of MIL-S-19500/228
* For use in low voltage,high frequency inverters ,free wheeling , and polarity protection ap

SB230 Applications

* Lead free in compliance with EU RoHS 2011/65/EU directive MECHANICAL DATA
* Case: DO-15 Molded plastic
* Terminals: Axial leads, solderable per MIL-STD-750,Method 2026
* Polarity: Color band denotes cathode end
* Weight: 0.014 ounces, 0.397 grams MAXIMUM R

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB230, SB220. Please refer to the document for exact specifications by model.

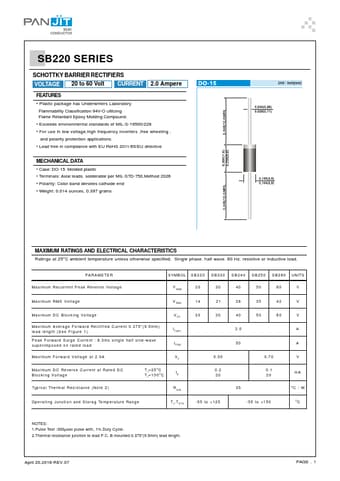

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB230, SB220
Manufacturer
PAN JIT
File Size
243.45 KB
Datasheet
SB220-PANJIT.pdf
Description
SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SB230, SB220.
Please refer to the document for exact specifications by model.
