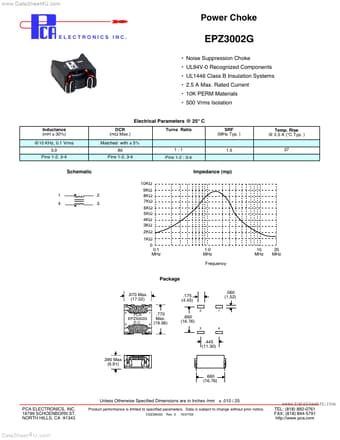

EPZ3002G, Power Choke

www.DataSheet4U.com Power Choke ELECTRONICS INC.

EPZ3002G Noise Suppression Choke UL94V-0 Recognized Components UL1446 Class B Insulation Systems 2.5 A Max.

Rated Current 10K PERM Materials 500 Vrms Isolation Electrical Parameters @ 25° C Inductance (mH ± 30%) @10 KHz, 0.1 Vrms 3.0 Pins 1-2, 3-4 DCR (mΩ Max.) Matched with ± 5% 80 Pins 1-2, 3-4 1:1 Pins 1-2 : 3-4 1.5 37 Turns Ratio SRF (MHz Typ.

) Temp.

Rise @ 2.5 A (°C Typ.

) Schema
