EPZ3004G Power Choke

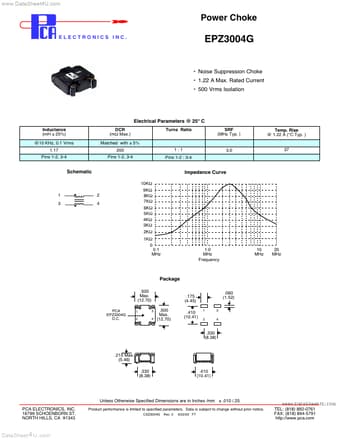

www.DataSheet4U.com Power Choke ELECTRONICS INC. EPZ3004G Noise Suppression Choke 1.22 A Max. Rated Current 500 Vrms Isolation Electrical Parameters @ 25° C Inductance (mH ± 25%) @10 KHz, 0.1 Vrms 1.17 Pins 1-2, 3-4 DCR (mΩ Max.) Matched with ± 5% 200 Pins 1-2, 3-4 1:1 Pins 1-2 : 3-4 3.0 37 Turns Ratio SRF (MHz Typ. ) Temp. Rise @ 1.22 A (°C Typ. ) Schematic 10KΩ 9KΩ 8KΩ 7KΩ 6KΩ 5KΩ 4KΩ 3KΩ 2KΩ 1KΩ 0 0.1 MHz Impedance Curve 1 3 2 4 1.0 MHz Frequency 10 MHz .

EPZ3004G_PCAELECTRONICS.pdf

Preview of EPZ3004G PDF

Datasheet Details

Part number:

EPZ3004G

Manufacturer:

PCA ELECTRONICS

File Size:

169.35 KB

Description:

Power choke.
