EPZ3006G Power Choke

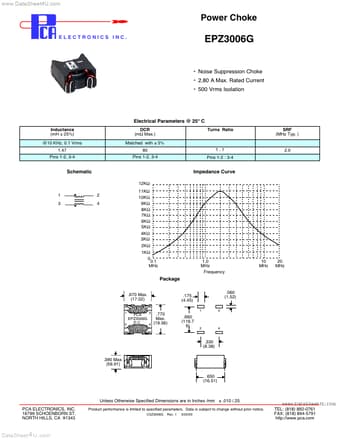

www.DataSheet4U.com Power Choke ELECTRONICS INC. EPZ3006G Noise Suppression Choke 2.80 A Max. Rated Current 500 Vrms Isolation Electrical Parameters @ 25° C Inductance (mH ± 25%) @10 KHz, 0.1 Vrms 1.47 Pins 1-2, 3-4 DCR (mΩ Max.) Matched with ± 5% 80 Pins 1-2, 3-4 1:1 Pins 1-2 : 3-4 2.0 Turns Ratio SRF (MHz Typ. ) Schematic 12KΩ 1 3 2 4 11KΩ 10KΩ 9KΩ 8KΩ 7KΩ 6KΩ 5KΩ 4KΩ 3KΩ 2KΩ 1KΩ 0 0.1 MHz Impedance Curve 1.0 MHz Frequency 10 MHz 20 MHz Package .670 Max. .

EPZ3006G_PCAELECTRONICS.pdf

Preview of EPZ3006G PDF

Datasheet Details

Part number:

EPZ3006G

Manufacturer:

PCA ELECTRONICS

File Size:

170.88 KB

Description:

Power choke.
