EPZ3003G Power Choke

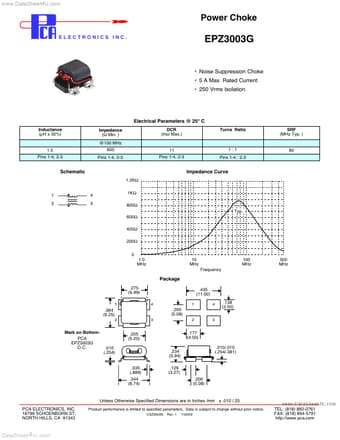

www.DataSheet4U.com Power Choke ELECTRONICS INC. EPZ3003G Noise Suppression Choke 5 A Max. Rated Current 250 Vrms Isolation Electrical Parameters @ 25° C Inductance (µH ± 30%) Impedance (Ω Min. ) @100 MHz 1.5 Pins 1-4, 2-3 600 Pins 1-4, 2-3 11 Pins 1-4, 2-3 1:1 Pins 1-4 : 2-3 80 DCR (mΩ Max.) Turns Ratio SRF (MHz Typ. ) Schematic 1.2KΩ 1 2 4 3 1KΩ 800Ω Impedance Curve Typ. 600Ω 400Ω 200Ω 0 1.0 MHz 10 MHz Frequency 100 MHz 500 MHz Package .275 (6.99) 1 4 1 .4.

EPZ3003G_PCAELECTRONICS.pdf

Preview of EPZ3003G PDF

Datasheet Details

Part number:

EPZ3003G

Manufacturer:

PCA ELECTRONICS

File Size:

156.21 KB

Description:

Power choke.
