S8740220GT

GaAs Push Pull Hybrid

S8740220GT Features

* Excellent linearity Superior return loss performance Extremely low distortion Optimal reliability Low noise Unconditionally stable under all terminations S8740220GT APPLICATION

* 40 to 870 MHz CATV amplifier systems DESCRIPTION

S8740220GT General Description



* Hybrid Push Pull amplifier module employing GaAs dice GaAs Push Pull Hybrid 40

* 870MHz 22.7dB min. Gain @ 870MHz 240mA max. @ 24VDC LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 60134) SYMBOL Vi Vov Tstg Tmb PARAMETER RF input voltage (single tone) .

S8740220GT Datasheet (81.66 KB)

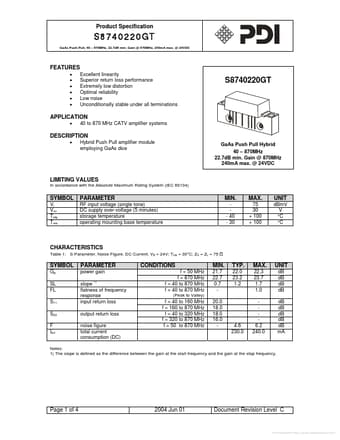

Preview of S8740220GT PDF

Datasheet Details

Part number:

S8740220GT

Manufacturer:

PDI

File Size:

81.66 KB

Description:

Gaas push pull hybrid.
